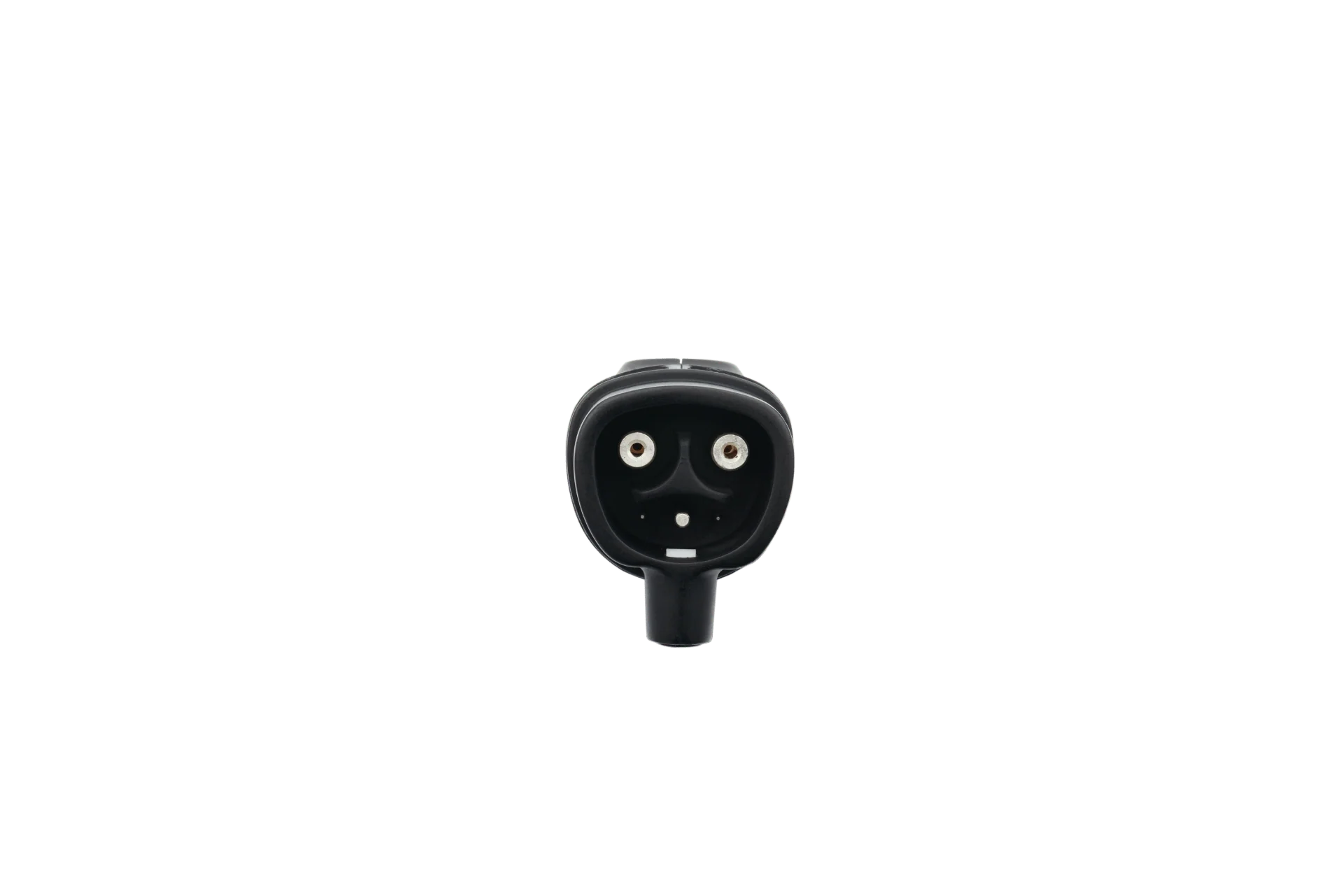

TPC(NACS) to CCS2-AC (TYPE2) Adapter



Description

For AC wall connector charging only. Not compatible with Tesla Supercharger.

Best Defense from Unplugs
JOWUA padlock design prevents unplugging from people in the public parking lot. (One free padlock is included.)

Connector Durability
Pass mechanical life (No-load plug > 10,000 cycles) and insertion force < 80N.

Electrical Performance
Rated Operating Current: 32A (MAX)
Operating Voltage: 250V (MAX) AC

Excellent Protection Performance
Housing: Flame-retardant Thermoplastic (flammability standard UL94 V-0)

Spec

Rated Current	32A (MAX)
Rated Voltage	250V (MAX) AC
Insertion Force	F < 80N
Connector Durability	No-load plug/unplug > 10,000 cycles
Flame Retardant Grade	UL94 V-0
Protection Grade	IP65
Terminal Temperature Rise	50K
Ambient Temperature	-30°C to + 50°C
Charging Standards Compatibility	IEC 62196-2
